CybChannelC Class Reference

#include <cybchannelc.h>

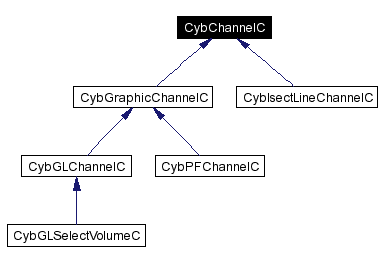

Inheritance diagram for CybChannelC:

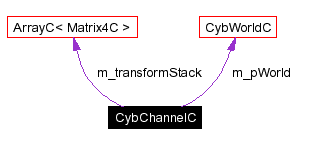

[legend]Collaboration diagram for CybChannelC:

[legend]List of all members.

Public Methods
	CybChannelC ()
virtual	~CybChannelC ()
const Matrix4C &	GetTransformMatrix ()
virtual void	SetWorld (CybWorldC *pW)
virtual Matrix4C	PopTransformMatrix ()
virtual void	PushTransformMatrix ()
virtual void	MultTransformMatrix (const Matrix4C &)
virtual void	ClearTransformStack ()
virtual void	IncScaleCounter ()
virtual void	DecScaleCounter ()
virtual int	GetScaleCounter () const
virtual void	IncLevelCounter ()
virtual void	DecLevelCounter ()
virtual short	TestBInfo (const CybBInfoC &)
virtual void	Process (CybGroupC *, short flag)
virtual void	Reset ()
long	GetRessourceID () const
void	SetRessourceID (long n)
Protected Attributes
ArrayC< Matrix4C >	m_transformStack
long	m_scaleCounter
long	m_levelCounter
long	m_id
long	m_lastBLevel
CybWorldC *	m_pWorld
long	m_lRessourceID

---

Constructor & Destructor Documentation

CybChannelC::CybChannelC (    )

virtual CybChannelC::~CybChannelC (    )  [inline, virtual]

Definition at line 25 of file cybchannelc.h. {}

---

Member Function Documentation

virtual void CybChannelC::ClearTransformStack (    )  [virtual]

virtual void CybChannelC::DecLevelCounter (    )  [inline, virtual]

Definition at line 38 of file cybchannelc.h. {m_levelCounter--;}

virtual void CybChannelC::DecScaleCounter (    )  [inline, virtual]

Definition at line 35 of file cybchannelc.h. {m_scaleCounter--;}

long CybChannelC::GetRessourceID (    )  const [inline]

Definition at line 45 of file cybchannelc.h. {return m_lRessourceID;}

virtual int CybChannelC::GetScaleCounter (    )  const [inline, virtual]

Definition at line 36 of file cybchannelc.h. {return m_scaleCounter;}

const Matrix4C& CybChannelC::GetTransformMatrix (    )

virtual void CybChannelC::IncLevelCounter (    )  [inline, virtual]

Definition at line 37 of file cybchannelc.h. {m_levelCounter++;}

virtual void CybChannelC::IncScaleCounter (    )  [inline, virtual]

Definition at line 34 of file cybchannelc.h. {m_scaleCounter++;}

virtual void CybChannelC::MultTransformMatrix (  const Matrix4C &    )  [virtual]

Reimplemented in CybIsectLineChannelC, and CybGLChannelC.

virtual Matrix4C CybChannelC::PopTransformMatrix (    )  [virtual]

Reimplemented in CybIsectLineChannelC, and CybGLChannelC.

virtual void CybChannelC::Process (  CybGroupC *   , short    flag )  [virtual]

Reimplemented in CybIsectLineChannelC, CybGLChannelC, CybGLSelectVolumeC, and CybPFChannelC.

virtual void CybChannelC::PushTransformMatrix (    )  [virtual]

Reimplemented in CybIsectLineChannelC, and CybGLChannelC.

virtual void CybChannelC::Reset (    )  [inline, virtual]

Reimplemented in CybGLChannelC. Definition at line 43 of file cybchannelc.h. {}

void CybChannelC::SetRessourceID (  long    n )  [inline]

Definition at line 46 of file cybchannelc.h. {m_lRessourceID =n;}

virtual void CybChannelC::SetWorld (  CybWorldC *    pW )  [inline, virtual]

Reimplemented in CybPFChannelC. Definition at line 28 of file cybchannelc.h. {m_pWorld = pW;}

virtual short CybChannelC::TestBInfo (  const CybBInfoC &    )  [inline, virtual]

Reimplemented in CybGraphicChannelC, and CybIsectLineChannelC. Definition at line 40 of file cybchannelc.h. {return 1;}

---

Member Data Documentation

long CybChannelC::m_id [protected]

Definition at line 52 of file cybchannelc.h.

long CybChannelC::m_lastBLevel [protected]

Definition at line 53 of file cybchannelc.h.

long CybChannelC::m_levelCounter [protected]

Definition at line 51 of file cybchannelc.h.

long CybChannelC::m_lRessourceID [protected]

Definition at line 57 of file cybchannelc.h.

CybWorldC* CybChannelC::m_pWorld [protected]

Definition at line 55 of file cybchannelc.h.

long CybChannelC::m_scaleCounter [protected]

Definition at line 50 of file cybchannelc.h.

ArrayC<Matrix4C> CybChannelC::m_transformStack [protected]

Definition at line 49 of file cybchannelc.h.

---

The documentation for this class was generated from the following file:

• cybchannelc.h

---
